DSMI Electronics SA (DSMI) acquires Precicontact SA assets

All the standard products are available as ROHS compliant and as non ROHS upon request

[left.htm]

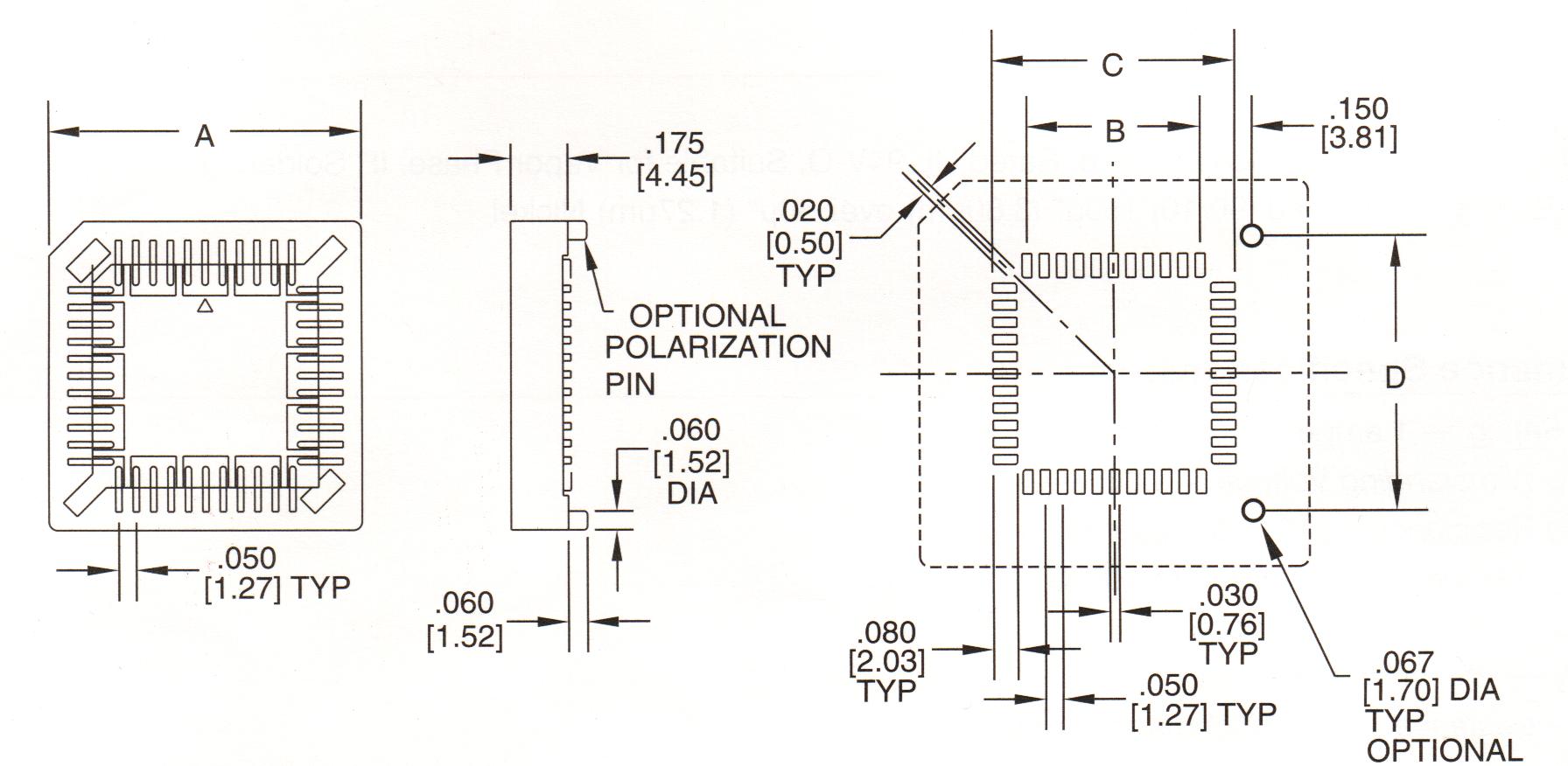

Surface Mount PLCC et PLCCA

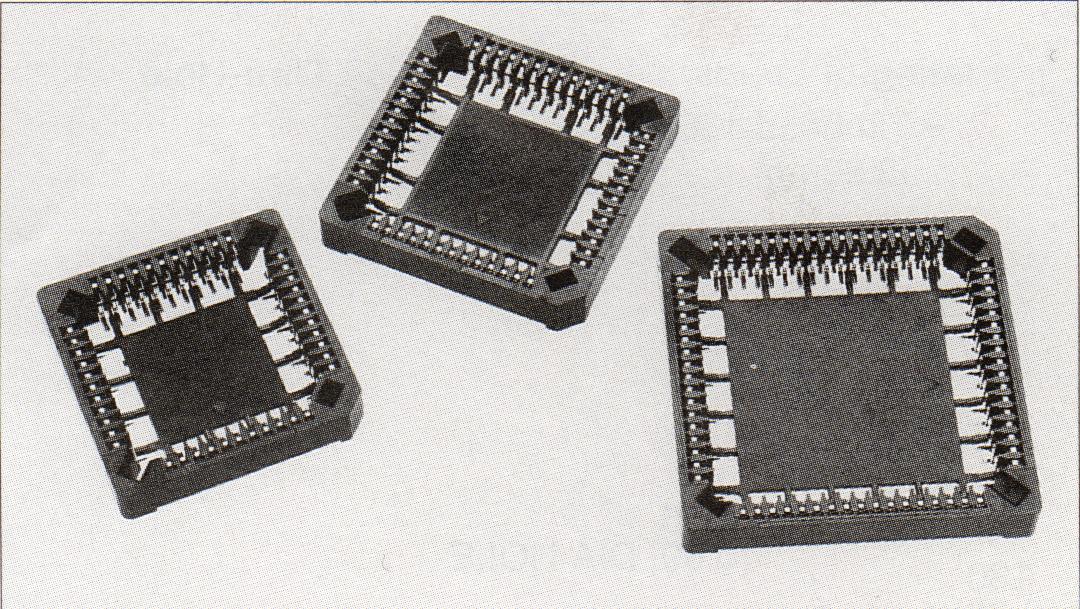

Low Profile Surface Mount Plastic Leaded Chip Carrier Sockets

  • Accepts JEDEC PLCC's - MO-047AA-AH and MO-052 AE.
  • Visual aids for registration.
  • Low profile for high density PC board stacking.
  • Standoffs provide clearance for heat dissipation and cleaning.
  • Available in all popular sizes, with tube, or tape and reel packaging.
  • Polarization pins available for all sizes.

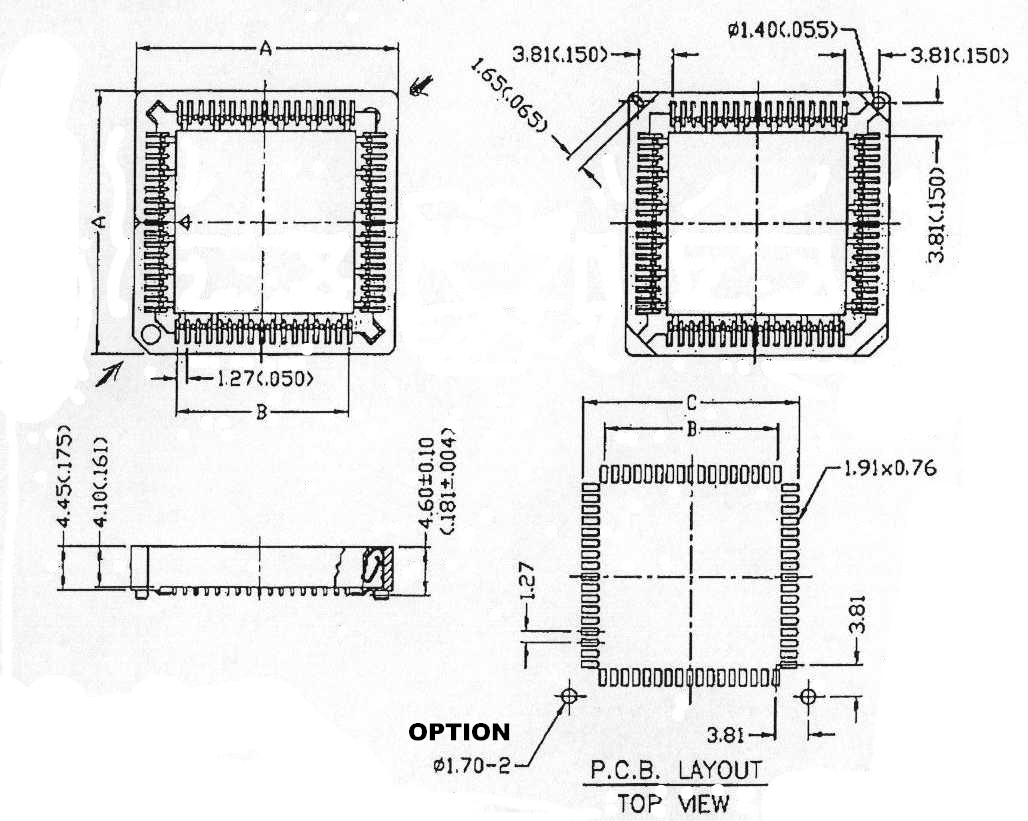

PLCCA

PART NUMBER

DIMENSION : inch(mm)

TOTAL N OF PINS

A

B

C

20

0.585 ( 14.86 )

0.200 ( 5.08 )

0.395 ( 10.03 )

28

0.685 ( 17.4 )

0.300 ( 7.62 )

0.495 ( 12.57 )

44

0.885 ( 22.48 )

0.500 ( 12.70 )

0.695 ( 17.65 )

52

1.000 ( 25.40 )

0.600 ( 15.24 )

0.795 ( 20.19 )

68

1.202 ( 30.53 )

0.800 ( 20.32 )

0.995 ( 25.27 )

84

1.400 ( 35.56 )

1.000 ( 25.40 )

1.195 ( 30.35 )

PLCCA




PLCCA

20

TL

SMT

TR

Series

No. of Positions

Plating of Leads

Surface Mount

TR - Tape and Reel

PLCCA

20

TL - Tin Lead 150" 3.80m

P - Polarized Pins*

PLCC

28

TF - Tin  150" 3.80m

Blank - without options

032 (RECT.)

44

52

68

84

*Polarization pins not available with Tape and Reel packaging.

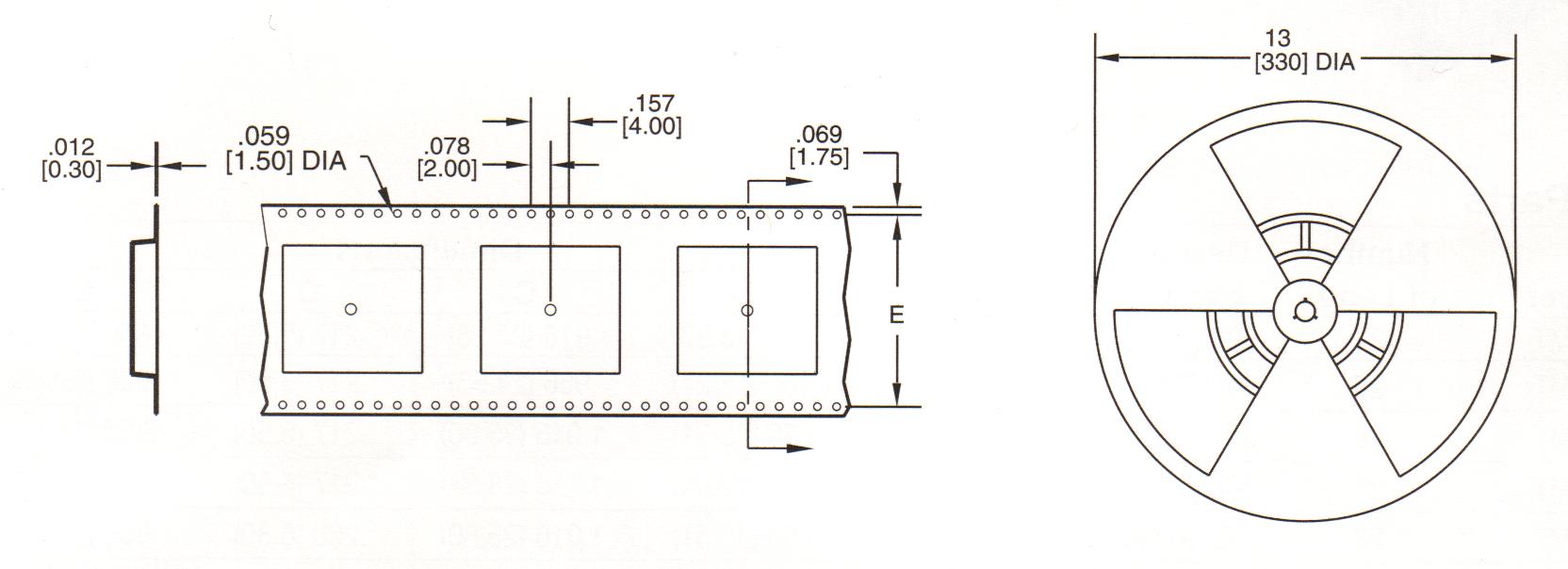

PLCC SMT SOCKET TAPE & REEL


PLCCA

MATERIALS

HOUSING : PPS. (U- 94V-O)

TERMINAL : PHOSPHOR BRONZE TIN PLATlNG

SPECIFICATIONS

CURRENT RATJNG : 1 AMP MAX

DIELECTRIC WITHSTANDING VOLTAGE : 500V AC R.M.S. FOR ONE MINUTE

INSULATION RESISTANCE 1000 OHMS MAX AT 500 VDC

CONTACT RESISTANCE 30mOHMS MAX

OPERATING TEMPERATURE : -55C TO +1O5C

MAX. PROCESSING TEMPERATURE : 230C FOR 30 TO 60 SECONDS.

PLCCA

PRODUCT SPECIFICATIONS : DETAILS







PLCC

Standard Parts

DIMENSIONS

PART NUMBER

NO. OF LEADS

A (SQ.)

B (SQ.)

C (SQ.)

D

E

PLCC020TFSMT

20

.613 (15.57)

.200 (5.08)

.404 (10.26)

.500 (12.70)

.808 (20.52)

PLCC028TFSMT

28

.720 (18.29)

.300 (7.62)

.504 (12.80)

.600 (15.24)

1.122 (28.50)

PLCC032TFSMT

32

SEE BELOW

PLCC044TFSMT

44

.920 (23.37)

.500 (12.70)

.704 (17.88)

.800 (20.32)

1.590 (40.39)

PLCC052TFSMT

52

1.020 (25.91)

.600 (15.24)

.804 (20.42)

.900 (22.86)

1.590 (40.39)

PLCC068TFSMT

68

1.220 (30.99)

.800 (20.32)

1.004 (25.50)

1.100 (27.94)

1.590 (40.49)

PLCC084TFSMT

84

1.420 (36.07)

1.000 (25.40)

1.204 (30.58)

1.300 (33.02)

2.062 (52.37)

PLCC

32 Position Rectangular

A

B

C

D

E

LONG

SHORT

LONG

SHORT

LONG

SHORT

SIDE

SIDE

SIDE

SIDE

SIDE

SIDE

.820 (20.83)

.720 (18.29)

.400 (10.16)

.300 (7.62)

.600 (15.24)

.504 (12.80)

.700 (17.78)

1.118 (28.40)


PLCC

Material Specifications :

Contact - Phosphor Bronze

Insulator - PPS, Polyphenylene Sulfide, Rated UL 94V-0, Suitable for Vapor Phase, IR Soldering

Contact Plating - Tin  150" (3.80m) over 50" (1.27m) Nickel

Carrier - Conductive Black HMS Styrene Alloy

Sealing Tape - Polyester

Reel - Carbon Filled High Impact Polystyrene

PLCC

Performance Specifications :

Current Rating - 1 ampere maximum

Dielectric Withstanding Voltage - 600 VRMS

Insulation Resistance -10,000 megohms minimum

Operating Temperature - -55 C to 105C

Capacitance - 1 picofarad maximum

Durability - 25 cycles minimum

Contact Resistance - 30 milliohms maximum
