DSMI Electronics SA (DSMI) acquires Precicontact SA assets

All the standard products are available as ROHS compliant and as non ROHS upon request

[left.htm]

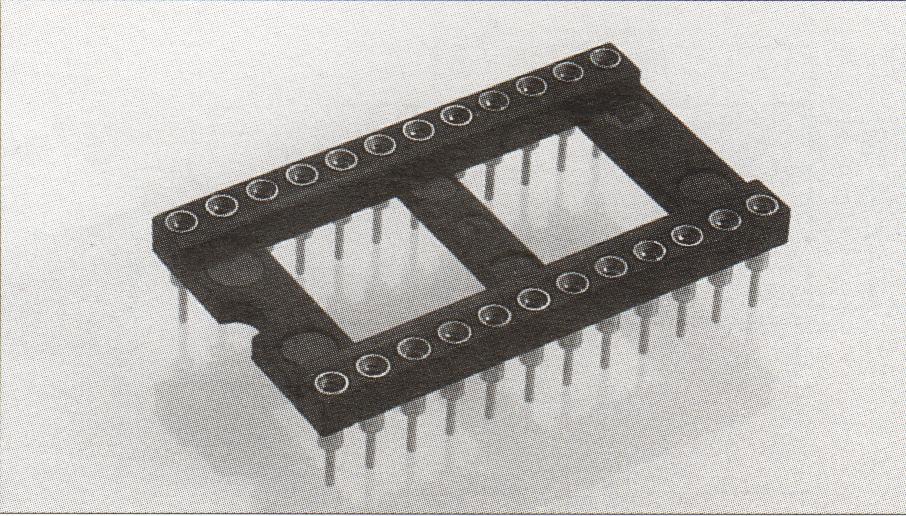

USO

Open Frame Dip Socket

bulletOpen insulator with ladder construction.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner
contact.
bulletSocket pins feature closed-end construction
eliminating any solder wicking problems.
bulletSocket pins available in a wide variety of
styles and plating options.
bulletPackaged in tubes compatible with
automatic insertion equipment.
bulletAvailable with lubricated contacts for telecom
applications.



Standard Parts

DIMENSIONS (See Fig. 1)

PART NUMBER

NUMBER OF PINS

A

B

C

D

US0306XXXXX

6

.300 (7.62)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0320XXXXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

US0324XXXXX

24

1.200 (30.48)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0328XXXXX

28

1.400 (35.56)

.400 (10.16)

.300 (7.62)

.125 (3.18)

US0628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.125 (3.18)

US0640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0648XXXXX

48

2.400 (60.96)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0964XXXXX

64

3.200 (81.28)

1.000 (25.40)

.900 (22.86)

.093 (2.36)

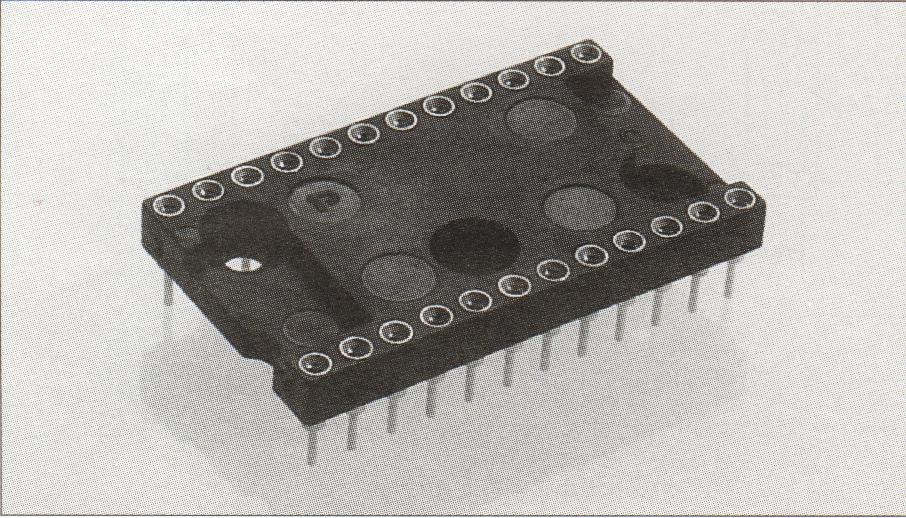

SO

Closed Frame Dip Socket

bulletClosed insulator.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner contact.
bulletSocket pins feature closed-end construction eliminating any solder wicking problems.
bulletSocket pins available in a wide variety of styles and plating options.
bulletPackaged in tubes compatible with automatic insertion equipment.
bulletAvailable with lubricated contacts for telecom applications.



Standard Parts

DIMENSIONS (See Fig. 1)

PART NUMBER

NUMBER OF PINS

A

B

C

D

S0308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0320XXXXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

S0624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

S0628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

S0632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.125 (3.18)

S0640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

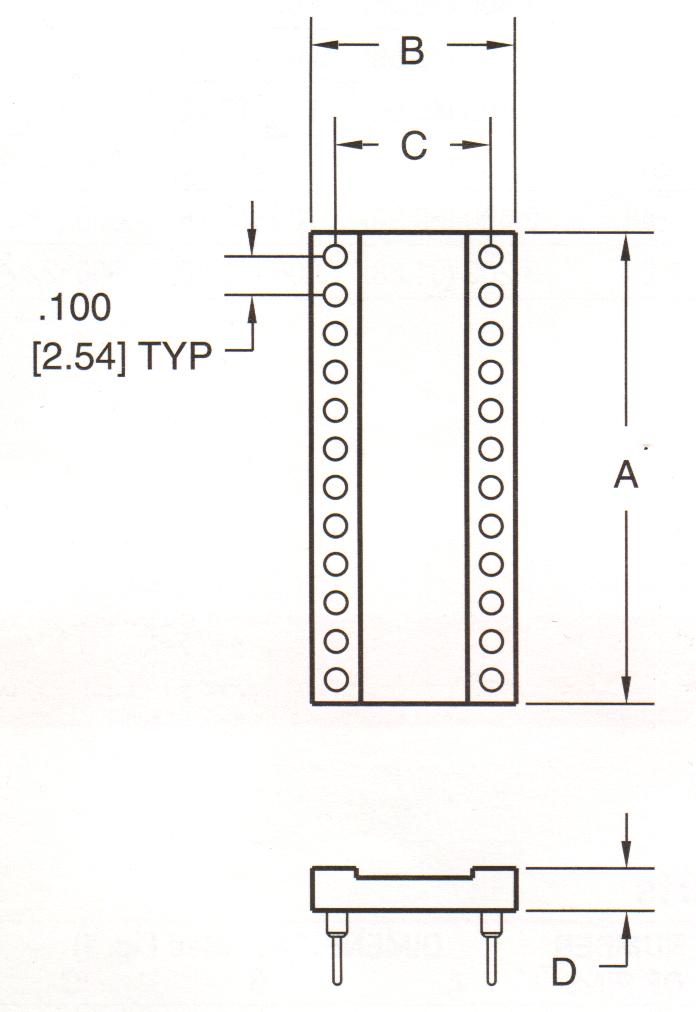

FIG 1uso-5-1.jpg (46870 octets) FIG 2 uso-5-2.jpg (45750 octets)



ORDERING INFORMATION



SO

3

18

TL

A

31

Series

DIP Spacing

Pin Number

Plating 0f Sleeve

Loose Pin Number

Plating of Inner Contact

USO (Open)

3 - .300 (7.62) centers

TL - Tin Lead 200" (5.08m)

Solder Tail Length

30 - GoId 10" (0.25m)

SO (Closed)

4 - .400 (10.16) centers

TB - Tin Lead 150" (3.80m)

See Fig 2

31 - GoId 30" (0.75m)

6 - .600 (15.24) centers

GH - GoId lO" (0.25m)

(E Dim.)

45 - GoId 15" (0.38m)

9 - .900 (22.86) centers

GK - GoId 30" (0.75m)

A - .125(3.18)  . . . .3000

36 - Tin Lead 200" (5.08m)

Tf - Tin  200" (5.08m)

B - .143(3.63) .. . . .3080

27 - GoId 5" (0.l3m)

C - .180(4.57) .  . . .3010

36F - Tin Lead 200" (5.08m) with lubricant

D - .275(6.99) . . . . 3190

34 - Tin  200" (5.08m)
          34F - Tin  200" (5.08m) with lubricant







Specifications:

Inner Contact - BeCu per QQ-C-533.

Outer Sleeve - Brass per QQ-B-626.

Insulator - Glass-filled Polyester Rated to UL94V-O.

Operathg Temperature - -650C to +1250C.

PCB Hole Size - .035 +- .003 (0.89 +- 0.08) solder termination.

Ail Platings - Over 100 " (2.54 m) minimum Nickel over 5 " (013 m) minimum Copper.

IC Pin Dimension Range - .016 (0.41) to .025 (0.63) round, .125 (318) minimum length,
.009 (0.23) x .015 (0.38) to .015 (0.38) x .022 (0.56) rectangular.

Insertion Force - 186 grams.

Withdrawal Force - 92 grams.
