DSMI Electronics SA (DSMI) acquires Precicontact SA assets

All the standard products are available as ROHS compliant and as non ROHS upon request

[left.htm]



US / SS / S

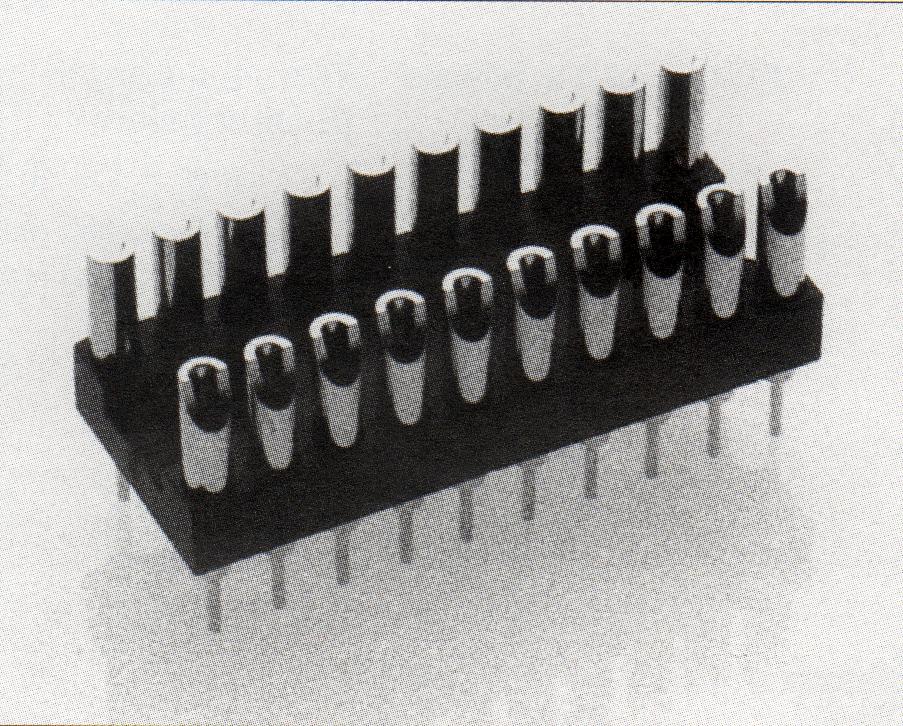

Soldertail Dip & Sip Strip Adapters

bulletOpen and closed insulators.
bulletAdapters are XY stackable.
bulletPrecision machined pins.
bulletUsed for interposing discrete components.
bulletLarge variety of styles.
bulletBreak-away strips available in lengths of 2-64, breakable at .100 (2.54) increments.





STANDARD PARTS ( DIP ADAPTERS )

PART NUMBER

NUMBER OF PINS

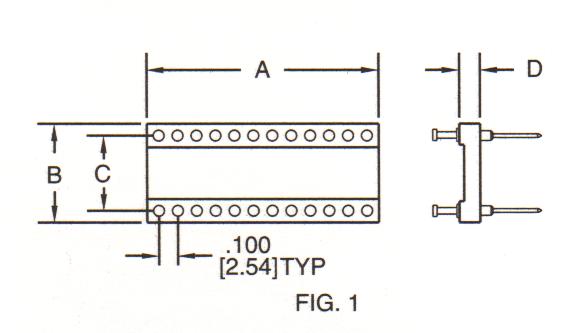

DIMENSIONS (See Fig. 1)

A

B

C

D (Open)

D (Closed)

USX306XXX

6

.300 (7.62)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.093 (2.36)

USX308XXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.093 (2.36)

USX314XXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

USX316XXX

16

.800 ( 20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

USX318XXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

USX320XXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.125 (3.18)

USX422XXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

.125 (3.18)

USX324XXX

24

1.200 (30.48)

.400 (10.16)

.300 (7.62)

.093 (2.36)

.110 (2.79)

USX624XXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

.125 (3.18)

USX328XXX

28

1.400 (35.56)

.400 (10.16)

.300 (7.62)

.110 (2.79)

.125( 3.18)

USX628XXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

N/A

USX632XXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.119 (3.02)

.110 (2.79)

USX640XXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

.125 (3.18)

USX648XXX

48

2.400 (60.96)

.700 (17.78)

.600 (15.24)

.093 (2.36)

N/A

USX964XXX

64

3.200 (81.28)

1.000 (25.40)

.900 (22.86)

.093 (2.36)

N/A



STANDARD PARTS ( SIP ADAPTERS )

PART NUMBER

NUMBER OF PINS

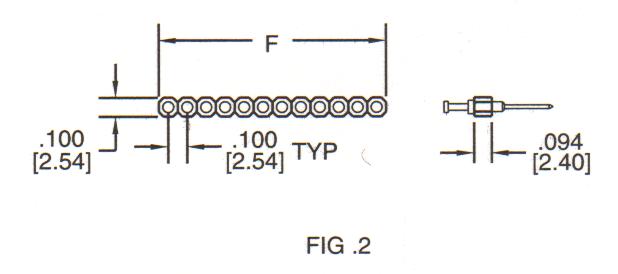

DIM. F (See Fig. 2)

SSX020XXX

20

2.000 (50.80)

SSX032XXX

32

3.200 (81.28)

SSX064XXX

64

6.400 (162.56)





TERMINAL STYLES

3007 3008 3006






ORDERING INFORMATION

U

S

A

6

24

TL

3

Styles

Corresponding

DIP Spacing

Number of Pins

Plating of Terminals

Terminal Length

U - Open Insulator

Terminal Loose Style Pin Number

0 - Strip Socket Only

TL - Tin Lead 200" (5.08m)

(E Dimension)

TF - Tin  200" (5.08m)

S - Strip (Breakaway)

A………………..3007

3 - .300 (7.62) centers

GH - GoId 10" (0.25m)

3 - 3 LeveI - .500 (12.70)

(Leave Blank for Closed Insulator)



B………………..3008

4 - .400 (10.16) centers

D………………..3006

6 - .600 (15.24) centers

9 - .900 (22.86) centers

 NOTE : For detailed insulator drawings, see pages 2 and 3.



Specifications :

Terminal - Brass per QQ-B-626

Insulator - Glass-filled Polyester Rated to UL94V-O

Operating Temperature - -65 C to + 125 C

Soldering - Wave soldering only (175 C for 15 seconds)

PCB Hole Size - .035 +/- .003 (0.89 +/- 0.08) solder termination

All Platings - Over 50" (1.27m) Nickel over 5" (0.13m) Copper
