DSMI Electronics SA (DSMI) acquires Precicontact SA assets

All the standard products are available as ROHS compliant and as non ROHS upon request

[left.htm]

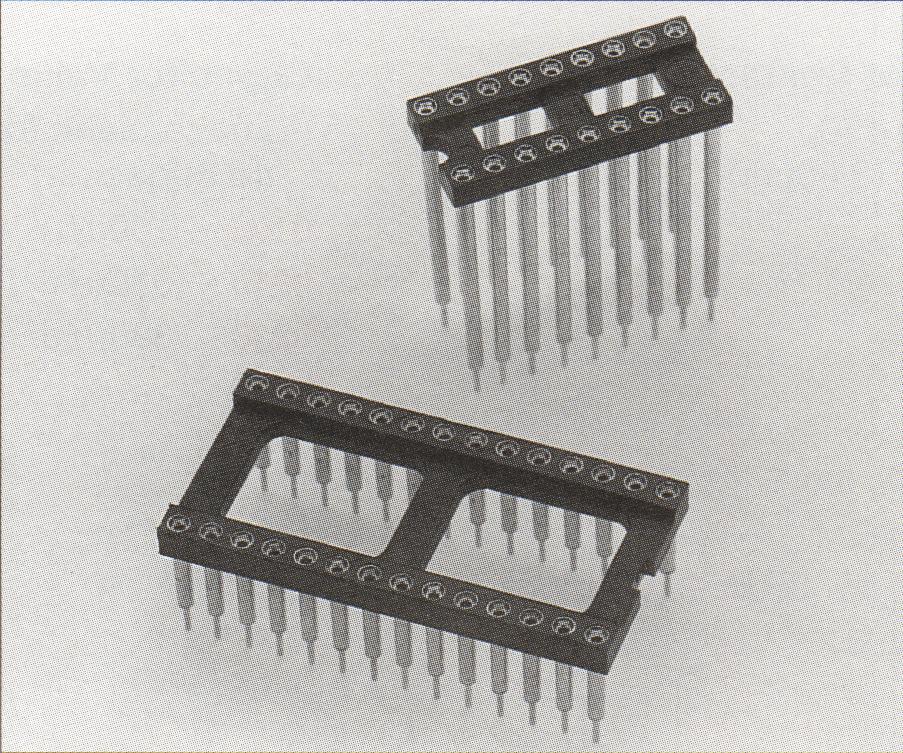

ULX / LX / SLX

Elevator sockets and Strips

bulletOpen and closed frame insulators available.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner contact.
bulletSIP strips break-away into any required length.
bulletElevator socket pins available in a wide variety of standoff heights and plating options.





Standard Parts

DIMENSIONS (See Fig. 1)

PART NUMBER     OPEN FRAME

NUMBER OF PINS

A

B

C

D

US0306XXXXX

6

.300 (7.62)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0320XXXXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

US0324XXXXX

24

1.200 (30.48)

.400 (10.16)

.300 (7.62)

.093 (2.36)

US0624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0328XXXXX

28

1.400 (35.56)

.400 (10.16)

.300 (7.62)

.125 (3.18)

US0628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.125 (3.18)

US0640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0648XXXXX

48

2.400 (60.96)

.700 (17.78)

.600 (15.24)

.093 (2.36)

US0964XXXXX

64

3.200 (81.28)

1.000 (25.40)

.900 (22.86)

.093 (2.36)

Special

SIP SOCKET
PART NUMBER

NUMBER OF PINS

DIMENSION F (See Fig. 2)

SLX020XXXXX

20

2.000 (50.80)

SLX032XXXXX

32

3.200 (81.28)

SLX064XXXXX

64

6.400 (162.56)



Standard Parts

DIMENSIONS (See Fig. 1)

PART NUMBER            CLOSED FRAME

NUMBER OF PINS

A

B

C

D

S0308XXXXX

8

.400 (10.16)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0314XXXXX

14

.700 (17.78)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0316XXXXX

16

.800 (20.32)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0318XXXXX

18

.900 (22.86)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0320XXXXX

20

1.000 (25.40)

.400 (10.16)

.300 (7.62)

.093 (2.36)

S0422XXXXX

22

1.100 (27.94)

.500 (12.70)

.400 (10.16)

.093 (2.36)

S0624XXXXX

24

1.200 (30.48)

.700 (17.78)

.600 (15.24)

.093 (2.36)

S0628XXXXX

28

1.400 (35.56)

.700 (17.78)

.600 (15.24)

.093 (2.36)

S0632XXXXX

32

1.600 (40.64)

.700 (17.78)

.600 (15.24)

.125 (3.18)

S0640XXXXX

40

2.000 (50.80)

.700 (17.78)

.600 (15.24)

.093 (2.36)

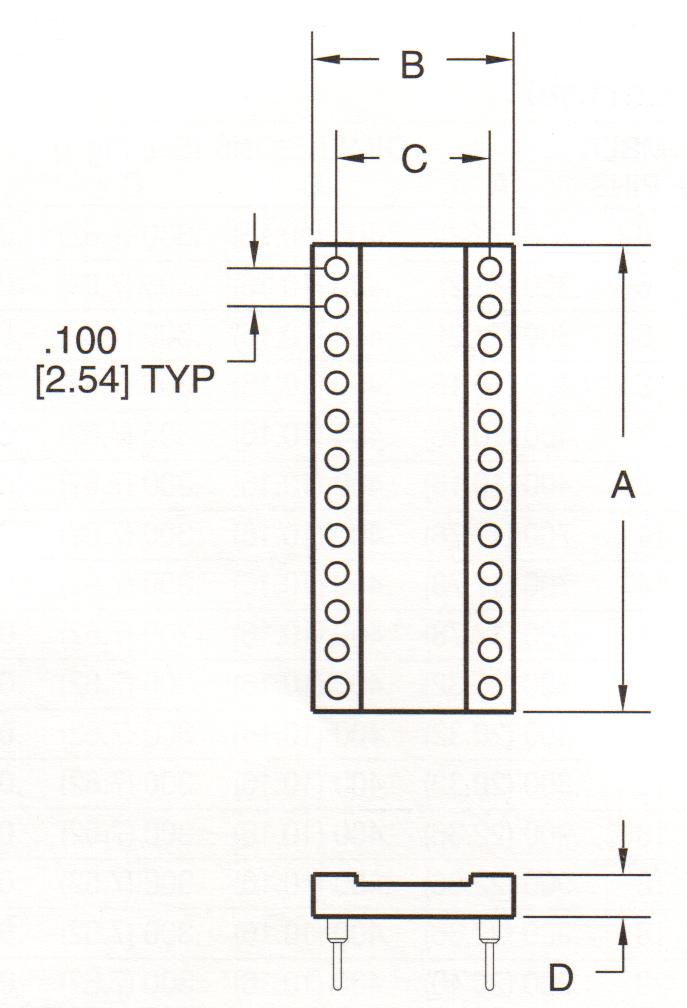

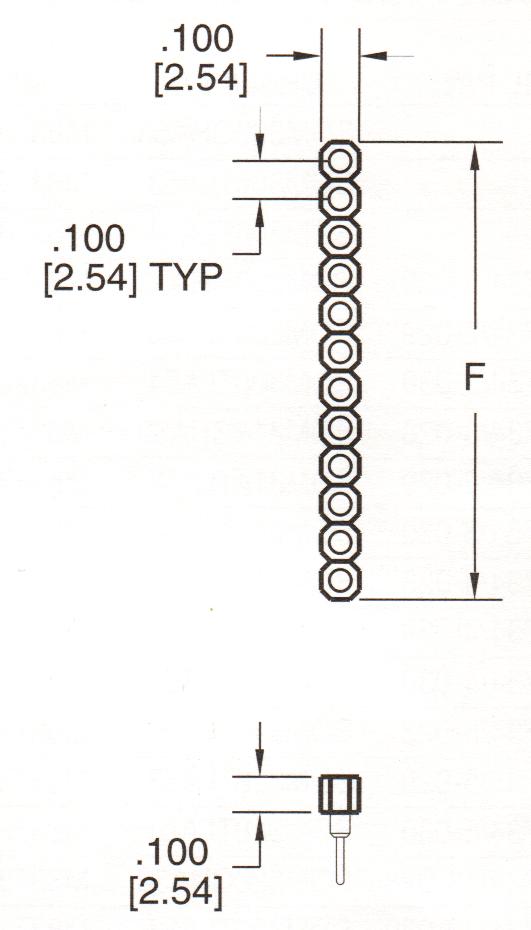

FIG 1 FIG 2

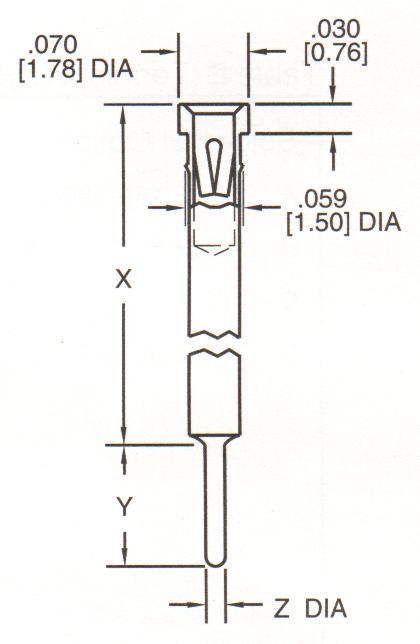

Fig 3 : ULX

Table 1

X

Y

Z

LOOSE PIN NO.

ULR/SLR

.199 (5.05)

.124 (3.15)

.019 (0.48)

3172

ULG/SLG

.240 (6.09)

.124 (3.15)

.019 (0.48)

3159

ULM/SLM

.272 (6.91)

.124 (3.15)

.019 (0.48)

3166

ULC/SLC

.300 (7.62)

.124 (3.15)

.019 (0.48)

3011-3

ULB/SLB

.350 (8.89)

.124 (3.15)

.019 (0.48)

3011-2

ULL/SLL

.400 (10.16)

.124 (3.15)

.019 (0.48)

3011-5

ULS/SLS

.493 (12.52)

.139 (3.53)

.019 (0.48)

3191

ULN/SLN

.512 (13.00)

.124 (3.15)

.019 (0.48)

3171

ULT/SLT

.524 (13.31)

.139 (3.53)

.019 (0.48)

3192

ULF/SLF

.634 (16.10)

.124 (3.15)

.019 (0.48)

3157

ULE/SLE

.665 (16.89)

.124 (3.15)

.019 (0.48)

3156

ULD/SLD

.809 (20.56)

.163 (4.14)

.019 (0.48)

3014

ULA/SLA

.875 (22.23)

.124 (3.15)

.019 (0.48)

3011-1



ORDERING INFORMATION

ULX

3

18

TL

A

31

Series

DIP Spacing

Pin Number

Plating 0f Sleeve

Loose Pin Number

Plating of Inner Contact

ULX                    (Open Frame)

 0 - strip socket only

TL - Tin Lead 200µ" (5.08µm)

A or leave blank

30 - GoId 10µ" (0.25µm)
LX                        (Closed Frame)

3 - .300 (7.62) centers

TB - Tin Lead 150µ" (3.80µm)

See Fig 3

31 - GoId 30µ" (0.75µm)
SLX                        (Single in line, Strip)

4 - .400 (10.16) centers

GH - GoId lOµ" (0.25µm)

(E Dim.).....Pin2

36 - Tin Lead 200µ"(5.08µm)
For LX           See table 1 : Heigth of elevator

6 - .600 (15.24) centers

TF - Tin  200µ" (5.08µm)

36F - Tin Lead 200µ"(5.08µm) with lubricant
9 - .900 (22.86) centers 34 - Tin  200µ"(5.08µm)
        34F - Tin  200µ"(5.08µm) with lubricant



Specifications:

Inner Contact - BeCu per QQ-C-533

Outer Sleeve - Brass per QQ-B-626

Insulator - Glass-filled Polyester Rated to UL94V-O

Operating Temperature -650C to +1250C

Soldering - Wave soldering only (1750C for 15 seconds)

PCB Thickness - .062 (1.57) to .125 (3.18)

PCB Hole Size - .035 +/- .003 (0.89 +/- 0.08) solder termination

All Platings - Over 50 µ" (1.27 µm) minimum Nickel over 5 µ" (0.13 µm) minimum Copper

IC Pin Dimension Range - .016 (0.41) to .025 (0.63) round, .125 (3.18) minimum length, .009 (0.23) x .015 (0.38) to .015 (0.38) x .022 (0.56) rectangular

Insertion Force - 186 grams

Withdrawal Force - 92 grams
