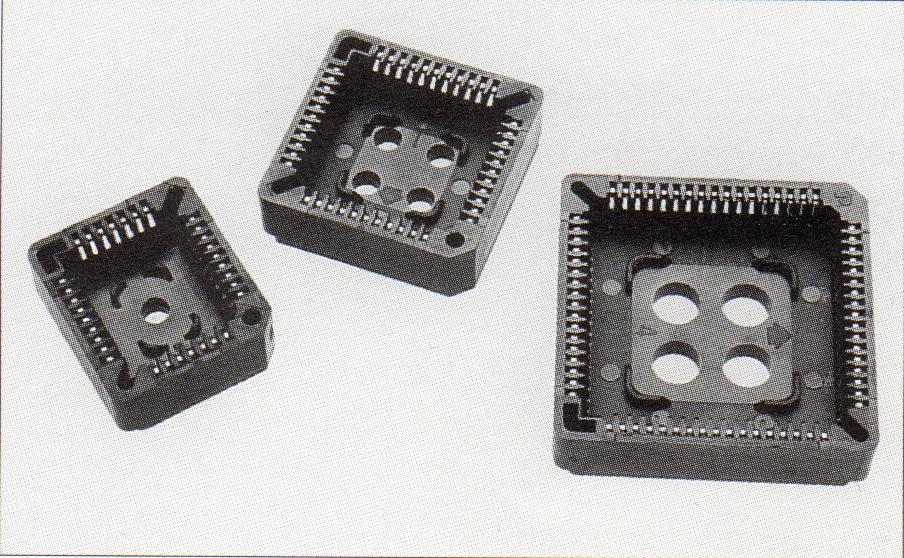

PLCC ( Thru-Hole )

Plastic Leaded Chip Carrier Sockets

bulletAccepts JEDEC PLCC's – MO-047AA-AH and MO-052 AE.
bulletVisual aids for registration.
bulletHoles for drainage
bulletStandoffs provide clearance for heat dissipation and cleaning.
bulletInternal standoffs insure proper positioning of chip carrier in socket.
bulletEasy access for probing installed chip carrier.

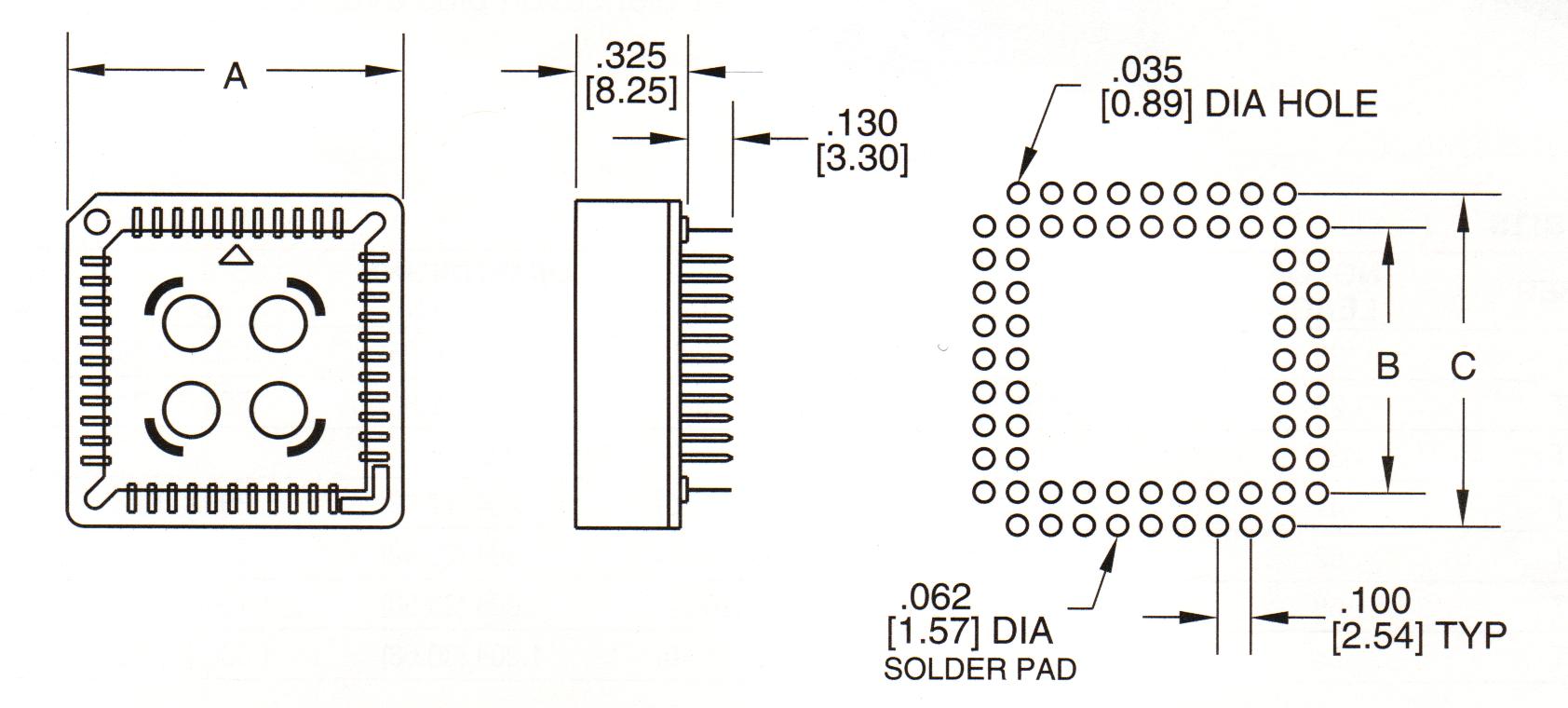

STANDARD PARTS

DIMENSIONS

PART NUMBER

NO. OF CONTACTS

A (SQ.)

B (SQ.)

C (SQ.)

PLCC020TFANS

20

.613 (15.57)

.200 (5.08)

.400 (10.16)

PLCC028TFANS

28

.720 (18.29)

.300 (7.62)

.500 (12.70)

PLCC032TFANS

32

SEE BELOW

PLCC044TFANS

44

.920 (23.37)

.500 (12.70)

.700 (17.78)

PLCC052TFANS

52

1.020 (25.91)

.600 (15.24)

.800 (20.32)

PLCC068TFANS

68

1.220 (30.99)

.800 (20.32)

1.000 (25.40)

PLCC084TFANS

84

1.420 (36.07)

1.000 (25.40)

1.200 (30.48)

PLCC100TFANS

100

1.660 (42.16)

1.200 (30.48)

1.400 (35.56)



M32 Position Rectangular

A

B

C

LONG SIDE

SHORT SIDE

LONG SIDE

SHORT SIDE

LONG SIDE

SHORT SIDE

.820 (20.83)

.722 (18.29)

.400 (10.16)

.300 (7.62)

.600 (15.24)

.500 (12.70)






ORDERING INFORMATION

PLCC

020

TL

ANS

Series

No. of Positions

Plating of Leads

Thru-HoIe

020

TL - Tin Lead 150" (3.80m)

028

Tf - Tin  150" (3.80m)

032(RECT)

044

052

068

084

100



Material Specifications :

Contact - Phosphor Bronze

Insulator

- PPS, Polyphenylene Sulfide, Rated UL 94V-O, Suitable for Vapor Phase, IR Soldering

- PBT polyster, Polyburtylene Terephtalare, Rated UL 94V-O, Wave soldering.

Contact PIating - Tin Lead (90/10) 150" (3.80m) over 50" (1.27m) Nickel



Performance Specifications :

Current Rating - 1 ampere maximum

Dielectric Withstanding Voltage - 600 VAC

Insulation Resistance - 10,000 megohms minimum

Operating Temperature - -55 C to 105 C

Capacitance - 1 picofarad maximum

Durability - 25 cycles minimum

Contact Resistance - 30 milliohms maximum
