DLO / SLO

Break Away Strip Socket : Low Profile DIP & SIP Strip Socket

DLO

SLO

PART NUMBER

NUMBER OF PINS

DIMENSIONS

Terminal Style

A

B

C

DSO6XXXXXXX

4-128

*

.700 (17.78)

.600 (15.24)

Soldertail

PART NUMBER

NUMBER OF PINS

DIMENSIONS

Terminal Style

A

SSOXXXXXXX

2-64

See Figure 2

Soldertail

bulletMolded plastic strip sockets can be divided into any length.
bulletIdeal for custom socket applications.
bulletSockets are XY stackable.
bulletMachined outer sleeve with BeCu inner contact.
bulletSocket pins feature closed-end construction eliminating any solder wicking problems.
bulletSocket pins available in a wide variety of styles and plating options.

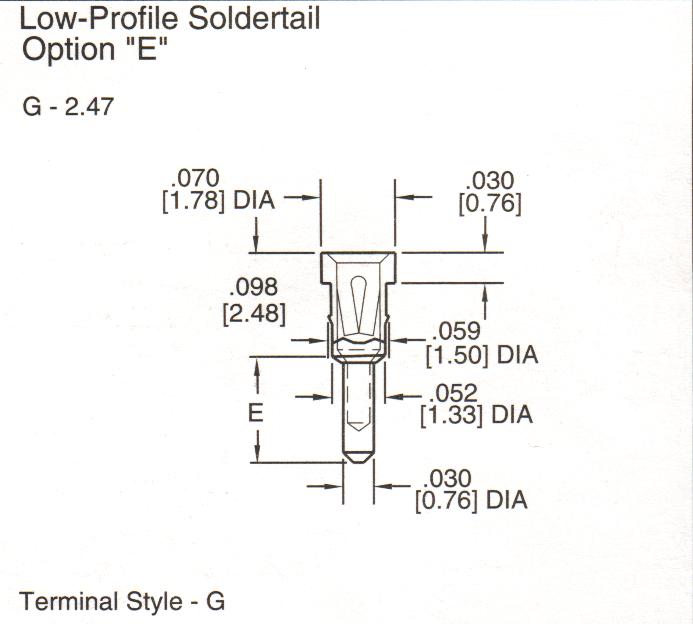

TERMINAL STYLES

G : 3161



ORDERING INFORMATION

DLO

0

18

TL

G

31

Series

DIP Spacing

Number of Pins

Plating of Sleeve

Solder Tail Corresponding

Plating of Inner Contact

Dual – DLO

0 - No Spacing (For Single-in-Line)

2 - 64 (Single Strips)

TL – Tin Lead 200µ" (5.08µm)

(E Dim.) Pin Number

30 – Gold 10µ" (0.25µm)

Single – SLO

6 - .600 (15.24) centers

4 - 128 (Dual Strips)

TB - Tin Lead 150µ" (3.80µm)

 G - .095 (2.42) …..3161

31 – Gold 30µ" (0.75µm)

GH – Gold 10µ" (0.25µm)

36 – Tin lead 200µ" (5.08µm)
TF – Tin  200µ" (5.08µm) 34 – Tin  200µ" (5.08µm)
